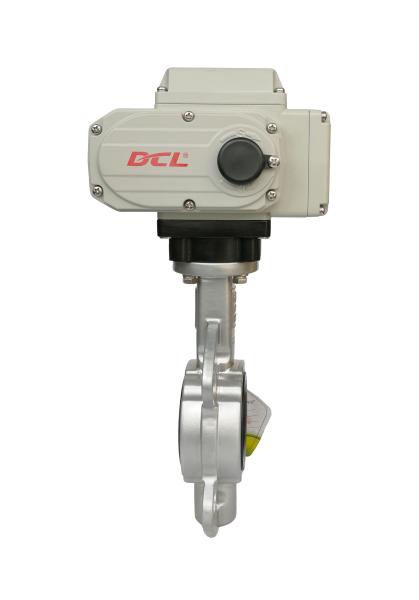

SS304 Concentric Electric Actuated Butterfly Valve DN50~DN65

Brand Name : DCL

Certification : CE/ROHS/CSA/IP67

Place of Origin : WUHAN,CHINA

MOQ : 1pc

Payment Terms : D/P, T/T, Western Union, MoneyGram

Supply Ability : 2000PCS/month

Delivery Time : 7 working days

Packaging Details : carton/pallet

Model Number : DCL-05

Name : Electric Actuated Butterfly Valve

Butterfly Valve : DN50~65

Ball Valve : DN40

Vent Valve : DN50~80

Design : compact design

standard : UL standard

Contact Now

SS304 Concentric Electric Actuated Butterfly Valve DN50~DN65

Electric Actuated Butterfly Valve Description

With the function of flow capacity, high regulation precision, good sealing, and light weight.ect. The Electric Actuated Butterfly Valve is widely used food, environmental protection, light industry, petroleum, paper, chemicals, teaching and research equipment, and electric power industries if inductrial automation control systems.

Electric actuator

The smallest size and most compact design in torque range from 1000Nm to 2500Nm
Extra-large super hard copper alloy final stage worm gear to reduce force and abrasion of gear
Double row chain from gear box to worm gear stem ensure torque transfer strength
Strong motor equipped to make sure high start torque beyond rated torque in 10% under rated voltage
Over 10000 times full stroke life cycle test with full rated load under duty rate 80%
Match up to DN650 butterfly valve, DN350 ball valve and DN1200 ventilation butterfly valve and flap valve.
Manual override with wrench or de-crutched handwheel
CSA certified per UL standard/CE marked/RoHS 3.0

Specification of Electric Actuated Butterfly Valve

Actuator Type	Butterfly Valve(≤PN1.0MPa)	Ball Valve(≤PN1.6MPa)	Vent Valve(≤PN0.1MPa)
DCL-02	≤DN40	≤DN32
DCL-05	DN50~65	DN40	DN50~80
DCL-10	DN80~100	DN50~65	DN100~200
DCL-20	DN125~150	DN80~100	DN250~300
DCL-40	DN200	DN125	DN350~450
DCL-60	DN250	DN150	DN500~600
DCL-100	DN300	DN200	DN700~800
DCL-160	DN350~400	DN250	DN900
DCL-250	DN450~600	DN300~350	DN1000~1200
