Subminiature 6W 15S/18Nm Quarter Turn Actuator

15S/18Nm Quarter Turn Actuator Subminiature Electric Actuator

Features

• Quarter turn operation with mechanical limits
• Rugged IP67 watertight, robust die cast aluminum enclosure/100% test under water
• Two auxiliary limit switches to confirm valve position
• Visual valve position indicator/flat or convex
• Manual override/handwheel optional
• Thermal overload protection heavy duty motor with PTC overheating protector
• Self-locking all metal gear drive, no additional brake required
• Over torque protector is optional for actuators torque larger than 100Nm
• CSA Listed per UL429 and CSA C22.2, CE mark, comply RoHS 3

Description

DCL common series electric actuator are typically used to drive quarter turn butterfly valves, ball valves, dampers and swinging arms. On receipt of a continuous power signal, the motor runs one direction and via an all metal gear box with last stage worm gear train rotates the output drive 90°. The motor is automatically stopped by internal cams striking limit switches. On receipt of a reversing continuous signal, the motor turns in the opposite direction reversing the output drive position.

Over torque protector is optional only if accurate output torque is needed. PTC electronic heating component is also used as thermostatically controlled anti-condensation heater that will protect actuator against damage from condensation.

6W Quarter Turn Actuator

15S/18Nm Quarter Turn Actuator

Subminiature Electric Actuator

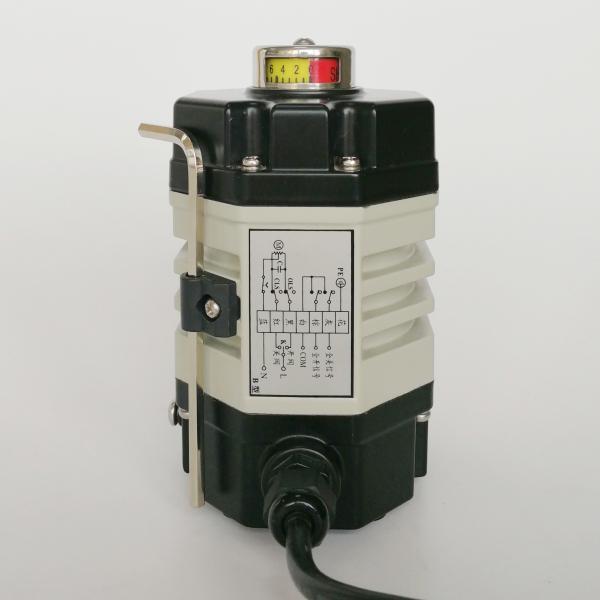

Subminiature 6W 15S/18Nm Quarter Turn Actuator Images
