IP67 Freezing Offset Eccentric Electric Butterfly Valve

Freezing Off/Set Eccentric Electric Butterfly Valve

Features

Concentric electric butterfly valve

• Body type: wafer or lug
• Body material: Ductile iron, SS304(CF8), SS316(CF8M)
• Seat material: EPDM, PTFE, NBR(Buna-N) available
• sure PN: Designed for commercial and industrial applications up to 200 psi
• Stem design: Available in square shaft for easy mounting of actuators
• Top flange: ISO 5211 direct mounting of actuators
• One piece shaft: Maintains disc position.
• Shaft pins: Enables a vibration free connection between the shaft and the disc..
• O ring seal: Provides a seal to interior stem and bushings.
• Bushings: Provide correct alignment of shaft through the body and reduces torque.
• Stem seal: Positive seal in both directions to prevent leakage.
• Bi-directional body & seat design, replaceable seat optional
• Backed seat support: Prevents stem leakage and high valve torque from poor installation.

Electric actuator

• The smallest size and most compact design in torque range from 1000Nm to 2500Nm
• Extra-large super hard copper alloy final stage worm gear to reduce force and abrasion of gear
• Double row chain from gear box to worm gear stem ensure torque transfer strength
• Strong motor equipped to make sure high start torque beyond rated torque in 10% under rated voltage
• Over 10000 times full stroke life cycle test with full rated load under duty rate 80%
• Match up to DN650 butterfly valve, DN350 ball valve and DN1200 ventilation butterfly valve and flap valve.
• Manual override with wrench or de-crutched handwheel
• CSA certified per UL standard/CE marked/RoHS 3.0

Specification

Eccentric Electric Butterfly Valve

Freezing Offset Electric Butterfly Valve

ip67 electric actuated butterfly valve

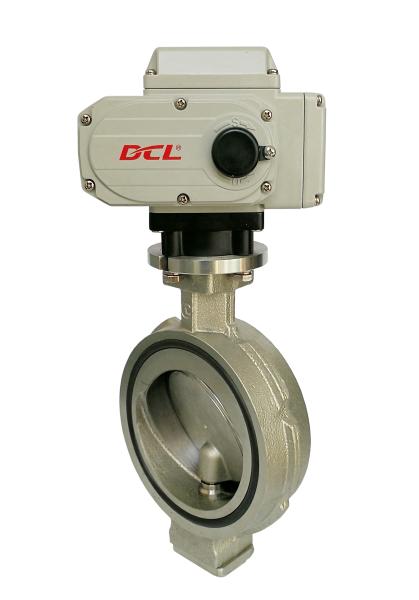

IP67 Freezing Offset Eccentric Electric Butterfly Valve Images
