Self Checking NEMA4/4X 2500Nm Smart Electric Actuator

Brand Name : DCL

Model Number : DCL E model

Certification : CE/ROHS/CSA/IP67

Place of Origin : WUHAN,CHINA

MOQ : 1pc

Packaging Details : carton/pallet

Delivery Time : 7 working days

Payment Terms : D/P, T/T, Western Union, MoneyGram

Supply Ability : 2000PCS/month

product name : Self diagnosis smart electric actuator

feature : automatically power off function

Standard Time : 20S to 75S

Motor Power : 6W to 140W

Total Weight : 1.2KG to 20KG

Ambient Temperature : -25℃~+55℃ / -13°F~+131°F

Installation Angle : 360°

function : Self calibrating and problem self checking

Contact Now

Self-diagnosis smart electric actuator with automatically power off function

DCL-05E~250E parameters.pdf

Features

Unique integral motor/control pack/ housing design with very small size and beautiful appearance
Valve position indicator/flat indicator or convex indicator available
Over torque protection by torque test function of smart full potted controller
Weather proof aluminum alloy enclosure with thermally bonded polyester coating
Heavy duty motor with thermal overload protection
Self-calibrating and problem self-checking function
Standard ISO5211 multi-flange valve mounting
Manual override with wrench or handwheel
High performance EMC with EFT, ESD and high voltage surge tested for control pack
CSA Certification per UL and CSA standard/CE marked/RoHS 3.0 passed

Specification:

Product Name:	Self Diagnosis Smart Electric Actuator
Function:	Self Calibrating And Problem Self Checking
Input Signal:	4-20mADC/1-5VDC/2-10VDC
Standard Torque:	50Nm To 2500Nm/442in.lbs To 22125in.lbs
Power Supply:	24VAC/110VAV/220VAC/380VAC
Protection Grade:	IP67 NEMA4/4X
Ambient Temperature:	-25℃~+55℃ / -13°F~+131°F
Output Signal:	4-20mADC
Standard Time:	20S To 75S
Motor Power:	6W To 140W
Total Weight:	1.2KG To 20KG
Installation Angle:	360°
Feature:	Automatically Power Off Function

Description

DCL modulating type electric has lots of self-diagnosis function such as malfunction of power, position inspection circuit and potentiometer broken, actuator stalled etc. Once malfunction happens, the LED lights on the control pack will flash with different colors, and motor power will be cut off automatically to keep whole system safe.

Actuators are rigorous tested and certified by CSA per UL and CSA standard. It can suffer 1200 times starts per hour and over total 200000 times starts for whole life cycle with rated torque.

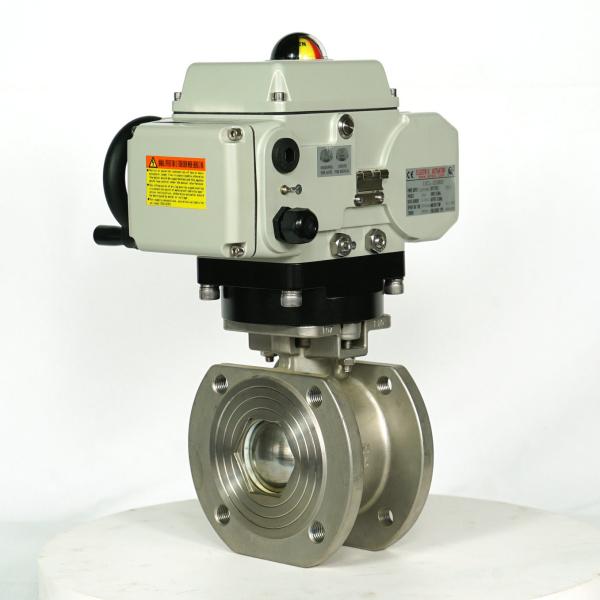

Self Checking NEMA4/4X 2500Nm Smart Electric Actuator

Product Tags:

IP67 Smart Electric Actuator

2500Nm Smart Electric Actuator

Self Checking NEMA4/4X 2500Nm Smart Electric Actuator Images
