20mA Smart Electric Actuator

Brand Name : DCL

Model Number : DCL E model

Certification : CE/ROHS/CSA/IP67

Place of Origin : WUHAN,CHINA

MOQ : 1pc

Packaging Details : carton/pallet

Delivery Time : 7 working days

Payment Terms : D/P, T/T, Western Union, MoneyGram

Supply Ability : 2000PCS/month

product name : Adjustable smart electric actuator

Motor Power : 6W to 140W

Standard Torque : 50Nm to 2500Nm

Protection Grade : IP67 waterproof

Media : Water

Application : General

Port Size : Standard or non standard

Power : Electricity

Contact Now

Adjustable smart electric actuator with output 4-20mA signal for valve position

Description

DCL modulating type electric actuator uses fully potted resin plastic packaged control pack. For intrusive electric actuators, fully potted control pack is more reliable and safer than the bare control board. If without fully potted package, the electronics on the control board are easily touched by mistaken operation when doing wiring or checking, then increase the failure rate of control board and actuator. If actuator works in high humidity environment or suffers big shock during transportation, resin plastic package is indispensable for controller.

The package can also help to shield some electromagnetic interferences. Our control pack can suffer 2500V surge test, 4000V EFT test, 4000V ESD test to ensure world leading EMC performance. Moreover, it also passed 85/85 test, which is continuously working in 85℃ and 85% humidity for over 600 hours stably.

Specification:

Type DCL-05E DCL-10E DCL-20E DCL-40E DCL-60E DCL-100E DCL-160E DCL-250E
Power AC24/110/220 AC24/110/220 AC24/110/220 AC24/110/220 AC24/110/220 AC110/220 AC110/220 AC110/220
Output Torque 50Nm 100Nm 200Nm 400Nm 600Nm 1000Nm 1600Nm 2500Nm
Acting Time 20S 30S 30S 30S 45S 30S 48S 75S
Turning Angle 0-90° 0-90° 0-90° 0-90° 0-90° 0-90° 0-90° 0-90°
Motor Power 10W 25W 40W 90W 90W 120W 140W 140W
Rated Current 1.50/0.24/ 0.16A 2.12/0.57/ 0.35A 3.65/0.65/ 0.37A 6.80/1.12/ 0.57A 6.80/1.18/ 0.60A 1.93/0.94A 1.75/0.96A 1.75/0.98A
Total Weight 2.5kg 4.5kg 9kg 9.5kg 10kg 19kg 19.5kg 20kg
Input Signal 4-20mADC,1-5VDC,2-10VDC
Output Singal 4-20mADC
Basic Error not more than ±1%
Reciprocating Error not more than 1%
Dead Space 0.5%-5.0% adjustable
Damping Characteristic 0 times
Repeating Error in Actuator ≤1%
Insulating Resistance AC24V:100MΩ/250VDC AC110/220V:100MΩ/500VDC
Withstand Voltage Class AC24V:500VAC 1minute AC110/220V:1500VAC 1minute
Protection Class IP67
Installation Angle 360°at any angle
Electric Interface Two G1/2 Wate-proof Cable Connectors,one for power line and one for signal line
Ambient Temperature -20~+55
Optional Function Over-torque protector/Dehumidify Heater/Passive contact switch/Dome indicator/Handle
Remark Any other input or output signal needed, please specified in purchase order.

Features

  • Quarter turn with proportional to input control signal, mechanical limits
  • Fully potted resin plastic packaged controller to insure high performance EMC
  • World leading anti-interference ability, control accuracy and sensitivity
  • Self-calibrating with continuously output position monitoring signal as standard
  • Unique integral motor/control pack/ housing design with very small size
  • 1200 starts/hour and 200000 starts life cycle, type tested by DCL and CSA
  • High performance EMC with EFT, ESD and high voltage surge tested for control pack
  • Watertight IP67 and NEMA 4X aluminum alloy enclosure with 100% underwater tests
  • Self-locking bronze alloy worm gear to resistance to abrasion
  • Heavy duty motor with thermal overload protection
  • Standard ISO5211 multi-flange valve mounting
  • CSA certification per UL and CSA standard/CE/RoHS 3

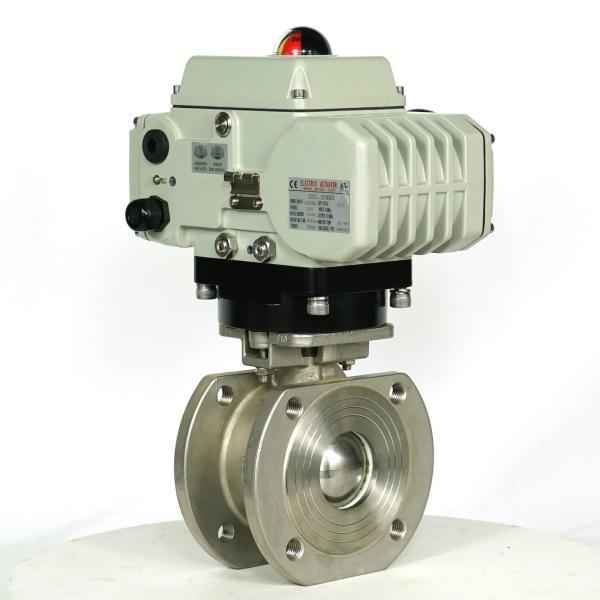

20mA Smart Electric Actuator

20mA Smart Electric Actuator
