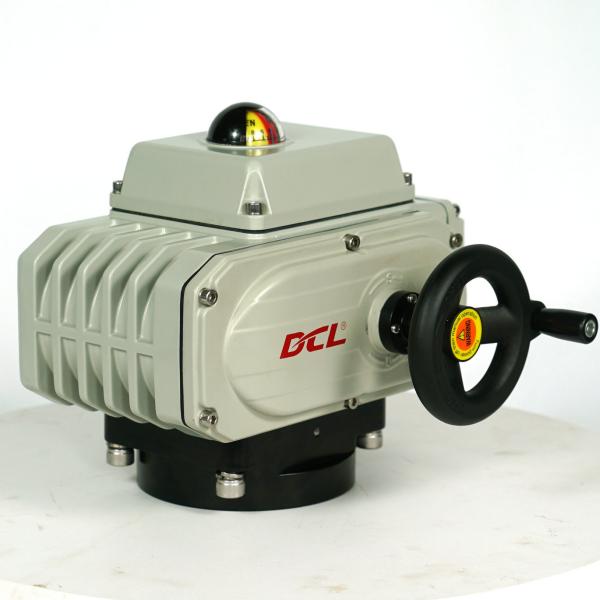

EPS Positioner Smart Electric Actuator

EPS positioner equipped smart electric actuator / 4-20mA input control signal

Features

• Full potted multi-function smart control pack, world leading anti-interference ability
• Quarter turn operation with modulating controlled by 4-20mA/1-5V/2-10V input signal
• Output 4-20mA signal for valve position
• Self-calibrating and problem self-checking function
• Quarter turn operation with mechanical limits
• Unique integral motor/control pack/ housing design with very small size and beautiful appearance
• Up to 1200 times/hour starting frequency and over 200,000 times starting test with full rated load
• Weather proof aluminum alloy enclosure with thermally bonded polyester coating
• Heavy duty motor with thermal overload protection
• Standard ISO5211 multi-flange valve mounting
• Manual override
• CSA certificated complied to UL and CSA standard/ CE marked

Description

DCL modulating type electric actuator with smart control pack is controlled by a 4-20mA or 2-10V input control signal. Changing the input control signal results in a proportional position change of the actuator out drive. Meantime output a 4-20mA ratio signal to feedback the actual position of actuator out drive as standard. With motor power on but a loss of control signal, actuator can be set to fail closed, fail open or fail in place.

The smart control pack is fully potted to protect the electronics from vibration and moisture. Actuator passed rigorous EMC test, including EFT, ESD and surge tests, and certified by CSA complied to UL and CSA standard.

EPS positioner Smart Electric Actuator

IP67 waterproof valve Actuator

modulating DCL valve Actuator

EPS Positioner Smart Electric Actuator Images
