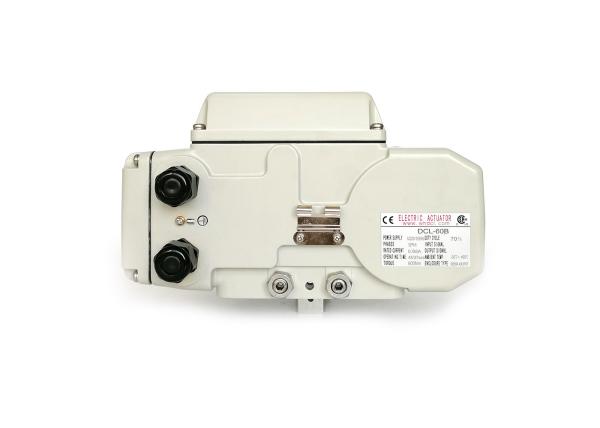

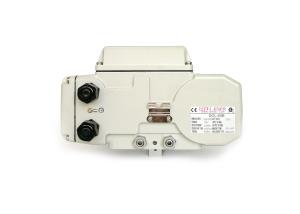

Permanent Lubricated Gear Train 600Nm UL429 Compact Actuator

  • 1
  • 2

Brand Name : DCL

Model Number : DCL-10B/20B/40B/60B/100B/160B/250B

Certification : CE/ROHS/CSA/IP67

Place of Origin : WUHAN,CHINA

Standard Time/Torque : 30S to 75S/100Nm to 2500Nm/885in.lbs to 22125in.lbs

Installation Angle : 360°

Total Weight : 4.5KG to 20KG

Motor Power : 15W to 140W

Ambient Temperature : -25℃~+55℃ / -13°F~+131°F

Protection Grade : IP67 NEMA4/4X

Power Supply : 24VAC/110VAV/220VAC

MOQ : 1pc

Packaging Details : carton/pallet

Delivery Time : 7 working days

Payment Terms : D/P, T/T, Western Union, MoneyGram

Supply Ability : 2000PCS/month

Contact Now

Electric compact actuator with permanent lubricated gear train / well sealing

Features

  • 1/4 turn operation with self-locking
  • Compact size for limit space with weather proof IP67/type 4X aluminum alloy housing
  • All gear trains are permanent lubricated, especially for worm gear. No need additional maintenance during whole life cycle field operation.
  • Automate ball valve and butterfly valve to adjust or cut off flow
  • Two auxiliary limit switches to confirm valve position
  • Manual override/handwheel optional
  • Heavy duty motor with thermal overload protection/duty rate 80%
  • Self-locking all metal gear drive, no additional brake required
  • Over 10000 times full range life cycle with full rated load
  • Resistance to extra low and high temperature and high moisture environment
  • Over torque protector is optional for actuators torque larger than 100Nm
  • CSA Listed per UL429 and CSA C22.2, CE mark, comply RoHS 3

Description

DCL common series electric actuator are typically used to drive quarter turn butterfly valves, ball valves, dampers and swinging arms. On receipt of a continuous power signal, the motor runs one direction and via an all metal gear box with last stage worm gear train rotates the output drive 90°. The motor is automatically stopped by internal cams striking limit switches. On receipt of a reversing continuous signal, the motor turns in the opposite direction reversing the output drive position.

DCL series anti-condensation electric actuator are widely used in high temperature and humidity environment. Sometimes, opening cover to do wiring and adjustment is unavoidable for customer. Thermostatically controlled heater is necessary for humid environment with big day/night temperature difference.

Over torque protector is optional only if accurate output torque is needed. PTC electronic heating component is also used as thermostatically controlled anti-condensation heater that will protect actuator against damage from condensation.

Specification

Actuator Type Standard Time/Torque Optional Time/Torque Turning Angle(Max.range) Total Weight Power Supply Selected Control Circuit
DCL-02 15S/18Nm 7S/9Nm 60S/18Nm 0~90°Adjustable 1.2Kg DC24V/AC24V AV110V/AC220V Types of A/B/E/G
DCL-05 20S/50Nm 4S/20Nm 10S/30Nm 60S/50Nm 0~360°Adjustable 2.5Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-10 30S/100Nm 15S/50Nm 60S/100Nm 0~360°Adjustable 4.5Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-20 30S/200Nm 15S/100Nm 60S/200Nm 0~90°Adjustable 9Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-40 30S/400Nm 15S/200Nm 60S/400Nm 9.5Kg
DCL-60 45S/600Nm 10Kg
DCL-100 30S/1000Nm 15S/500Nm 0~90°Adjustable 19Kg AV110V/AC220V/AC380V Types of A/B/C/D/E/F/H
DCL-160 48S/1600Nm 19.5Kg
DCL-250 75S/2500Nm 20Kg
Performance Parameters List of Adjusting type(Type E)
DCL-MZZ 18Nm 3r 1.2Kg DC24V Type MZZ
DCL-10GE 30S/0~100Nm 15S/0~100Nm 0~90°Adjustable 4.5Kg DC24V±10% Type GE
DCL-40GE 30S/100~600Nm 15S/100~400Nm 9.5Kg

Permanent Lubricated Gear Train 600Nm UL429 Compact Actuator

Permanent Lubricated Gear Train 600Nm UL429 Compact Actuator


Product Tags:

IP67 waterproof Compact Actuator



UL429 Compact Actuator



600Nm Butterfly Valve Actuator


Quality Permanent Lubricated Gear Train 600Nm UL429 Compact Actuator wholesale

Permanent Lubricated Gear Train 600Nm UL429 Compact Actuator Images
