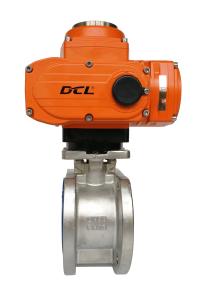

On Off Winery IP68 60S 50Nm Explosion Proof Electric Actuator

Winery used explosion proof electric actuator / coupling with super short ball valves

Features

• On-off type quarter turn operation with mechanical limits
• ExdIICT4 grade for ATEX and Class 1 Zone 1, Group C, D T4 grade for Class 1 Division 1
• Watertight and whether proof IP68 and NEMA 4X for outdoor use
• Stainless steel visual valve position indicator with 10mm hard tempered glass
• Dehumidify heater optional to protect against condensation
• Over torque limit switches optional
• Heavy duty full enclosed motor with thermal overload protection
• Manual override for emergency issue
• CSA certification per UL and CSA standard/ATEX certified

Description

DCL explosion proof electric actuators are widely used in liquor factories to drive ball valves. The alcohol content of liquor such as Whiskey and Vodka is very high and easily volatilized and burned. That is why plants those produce liquor must use explosion proof automation devices. Unlike oil & gas or power plant, pipes in winery are commonly in a medium size that is less than DN65(1 1/4”), which can be perfectly matched with DCL actuator’s torque range when coupled with ball valves. The main gas emissions in winery is Ethanol(alcohol), so the explosion proof grade is good enough for winery uses.

Considering the compact size and patent integral design, DCL explosion proof electric actuators must be the most costing saving choice for liquor factories.

Specification:

50Nm explosion proof valve actuator

IP68 waterproof valve actuator

100Nm Explosion Proof Actuator
