ATEX IECEx Standard 24VDC Modulating Explosion Proof Electric Actuator

ATEX/IECEx Standard 24VDC Modulating Explosion Proof Electric Actuator With ExdIICT4 Grade

Features

• Quarter turn operation with mechanical limits
• 4-20mA input and output signal for valve position control
• 50Nm to 600Nm rated torque range
• Heavy duty DC brush motor with thermal overload protection and high start torque
• Rugged IP68/NEMA 7 hard die cast aluminum alloy housing with powder coating
• Explosion proof grade ExdIICT4 for Zone system and Group C, D T4 for Division system
• Over torque protection is available
• Anti-condensation heater is optional
• Standard ISO5211 direct installation
• Manual override with Allen wrench or handwheel
• ATEX/IECEx/UL/CSA standard

Description

DCL low voltage DC powered modulating type compact explosion proof electric actuators are 100% DCL self designed new products. DCL explosion proof electric actuators are most space saving, costing saving and highest efficiency compared to other type explosion proof ones. Moreover, for DC modulating type, DCL designed a smart control pack with very small size, to ensure it can be put into such small cavity.

Small size and cavity avoid high explosion pressure, and make actuators more safety and higher anti-explosion grade. DCL DC powered modulating explosion proof electric actuators are very reliable with very competitive prices. DCL has obtained ATEX and CSA certification for this series.

IECEx Explosion Proof Electric Actuator

ATEX Explosion Proof Electric Actuator

24vdc explosion proof valve actuator

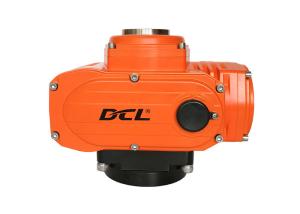

ATEX IECEx Standard 24VDC Modulating Explosion Proof Electric Actuator Images
